Another mystery connector - tablet video output Can you help identify?

#1 User is offline   Shez

  • PipPipPipPipPipPipPipPipPipPip
  • Group: Regular Members
  • Posts: 1,852
  • Joined: 30-November 05
  • Gender:Male
  • Location:Leicester

Posted 09 August 2012 - 08:32 PM

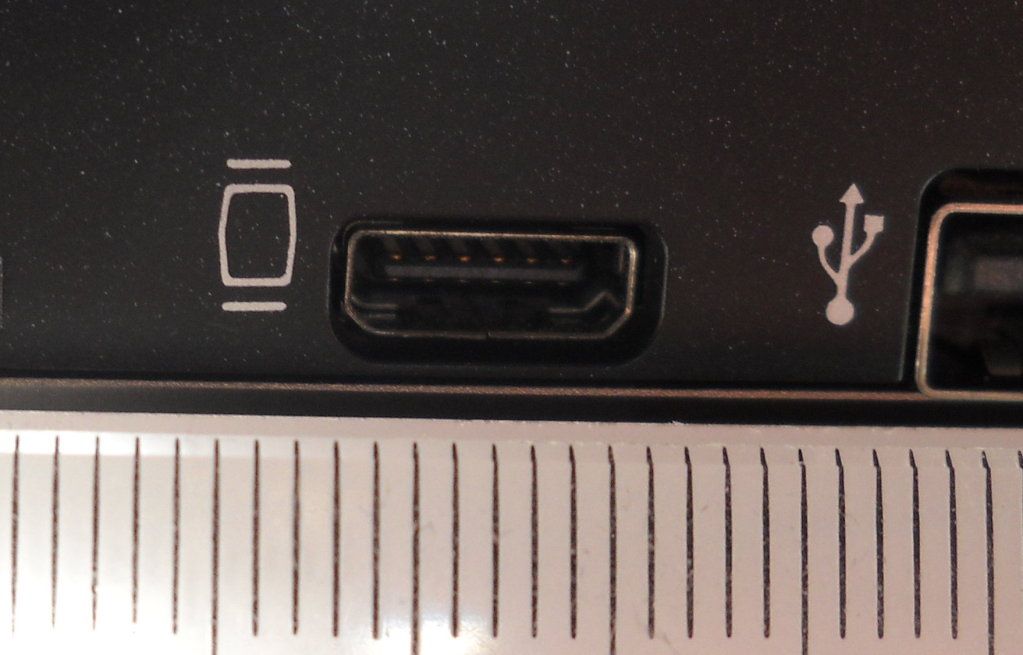

This one's probably easy but I'm drawing a bit of a blank. (Graduations below are mm for scale). The manual suggests it's a mini-VGA connector, but the pictures I've found online of those don't tally. It's not mini-DP or mini-DVI either.

Any advance on those?

Posted Image

#2 User is offline   peza2010

  • Chief
  • PipPipPipPipPipPip
  • Group: Regular Members
  • Posts: 647
  • Joined: 13-September 10
  • Gender:Male
  • Location:East Midlands

Posted 09 August 2012 - 08:41 PM

laptop? computer? what is the unit?


cheers, George
Freelance Lighting Engineer
(when not on tour)
email me if I can be of any use.

#3 User is offline   madorangepanda

  • Part-timer
  • PipPip
  • Group: Regular Members
  • Posts: 234
  • Joined: 10-December 08
  • Gender:Male

Posted 09 August 2012 - 08:42 PM

What tablet is it? Lots of manufacturers use proprietary connectors and only their own adapter cable will work.
Ladders Scaffold Towers Zarges and more from Alloy Access Ltd

#4 User is offline   Shez

  • PipPipPipPipPipPipPipPipPipPip
  • Group: Regular Members
  • Posts: 1,852
  • Joined: 30-November 05
  • Gender:Male
  • Location:Leicester

Posted 09 August 2012 - 08:51 PM

It's a Viewsonic VPAD10 tablet. I was beginning to wonder if it might be proprietary to them...

#5 User is offline   David Lee

  • Deputy Chief
  • PipPipPipPipPip
  • Group: Regular Members
  • Posts: 563
  • Joined: 18-September 03
  • Gender:Male
  • Location:Nr Cambridge when I'm home

Posted 09 August 2012 - 09:18 PM

According to its spec, it is mini VGA. Oh joy another adaptor :( WIKI

#6 User is offline   Shez

  • PipPipPipPipPipPipPipPipPipPip
  • Group: Regular Members
  • Posts: 1,852
  • Joined: 30-November 05
  • Gender:Male
  • Location:Leicester

Posted 09 August 2012 - 09:36 PM

It doesn't look like it's mini VGA - that has fourteen contacts, offset, whereas this has only 12, lined up equally on each side of the central tongue.

#7 User is offline   Tezzachs

  • Climbing the roster
  • Group: Regular Members
  • Posts: 28
  • Joined: 04-April 12
  • Gender:Male
  • Location:Ramsgate, Kent

Posted 09 August 2012 - 10:41 PM

it looks the new connector Apple are usuing onn their screens now, cant remember the name of it off hand

#8 User is offline   jiggles

  • Regular
  • Pip
  • Group: Regular Members
  • Posts: 158
  • Joined: 14-December 09
  • Gender:Male
  • Location:Edinburgh

Posted 09 August 2012 - 10:43 PM

View PostTezzachs, on 09 August 2012 - 10:41 PM, said:

it looks the new connector Apple are usuing onn their screens now, cant remember the name of it off hand


Apple havent made any new connectors for display since they released the mini display port.
The CV: www.callum-burns.co.uk/ << Really needs updated... :D

#9 User is offline   Shez

  • PipPipPipPipPipPipPipPipPipPip
  • Group: Regular Members
  • Posts: 1,852
  • Joined: 30-November 05
  • Gender:Male
  • Location:Leicester

Posted 09 August 2012 - 11:18 PM

Looks like this might be what I'm after. If I was in America...

#10 User is offline   ramdram

  • PipPipPipPipPipPipPipPipPipPip
  • Group: Regular Members
  • Posts: 1,378
  • Joined: 20-April 10
  • Location:Far East Cornwall

Posted 09 August 2012 - 11:31 PM

http://en.wikipedia....bolt_(interface)

Possibly???

#11 User is offline   Shez

  • PipPipPipPipPipPipPipPipPipPip
  • Group: Regular Members
  • Posts: 1,852
  • Joined: 30-November 05
  • Gender:Male
  • Location:Leicester

Posted 09 August 2012 - 11:41 PM

Very similar looking but alas not.
Bring back the days of 9 & 25 pin serial ports when every port looked completely different to every other port and they were all so easy to identify!

#12 User is offline   c.cam108

  • Part-timer
  • PipPip
  • Group: Regular Members
  • Posts: 206
  • Joined: 19-May 08
  • Gender:Male
  • Location:East Kilbride

Posted 10 August 2012 - 07:37 AM

Definitely not thunderbolt - it's almost square. Is it Mini HDMI? http://www.dslrphoto...ameras,759.html

#13 User is offline   grizzly

  • Part-timer
  • PipPip
  • Group: Regular Members
  • Posts: 267
  • Joined: 16-January 07
  • Gender:Male
  • Location:London

Posted 10 August 2012 - 07:43 AM

It's definitely not Apple Mini DisplayPort or Thunderbolt, nor is it an Apple miniVGA. However, it is a miniVGA connector. It's just that Apple, HP and ASUS have all made different connectors with the same name (!).ViewSonic sell the adaptor on their online shop: http://shop.viewsonic.com/tablets/tablet-accessories/cb-00009947.html ETA: Ah, I see you already posted that link further up thread. Is there anything stopping you from purchasing from an American store?

ETA2: Looks like they sell it here: http://www.plccenter...ONIC/CB00009947

This post has been edited by grizzly: 10 August 2012 - 08:30 AM

#14 User is offline   Shez

  • PipPipPipPipPipPipPipPipPipPip
  • Group: Regular Members
  • Posts: 1,852
  • Joined: 30-November 05
  • Gender:Male
  • Location:Leicester

Posted 10 August 2012 - 10:06 AM

View Postgrizzly, on 10 August 2012 - 07:43 AM, said:

Is there anything stopping you from purchasing from an American store?

Yes - they only deliver to the US or Canada... Thanks for the UK store link; I think that'll be the way to go.

#15 User is offline   grizzly

  • Part-timer
  • PipPip
  • Group: Regular Members
  • Posts: 267
  • Joined: 16-January 07
  • Gender:Male
  • Location:London

Posted 10 August 2012 - 10:17 AM

View PostShez, on 10 August 2012 - 10:06 AM, said:

Yes - they only deliver to the US or Canada...


Ah, that may well be something of an obstacle Posted Image
